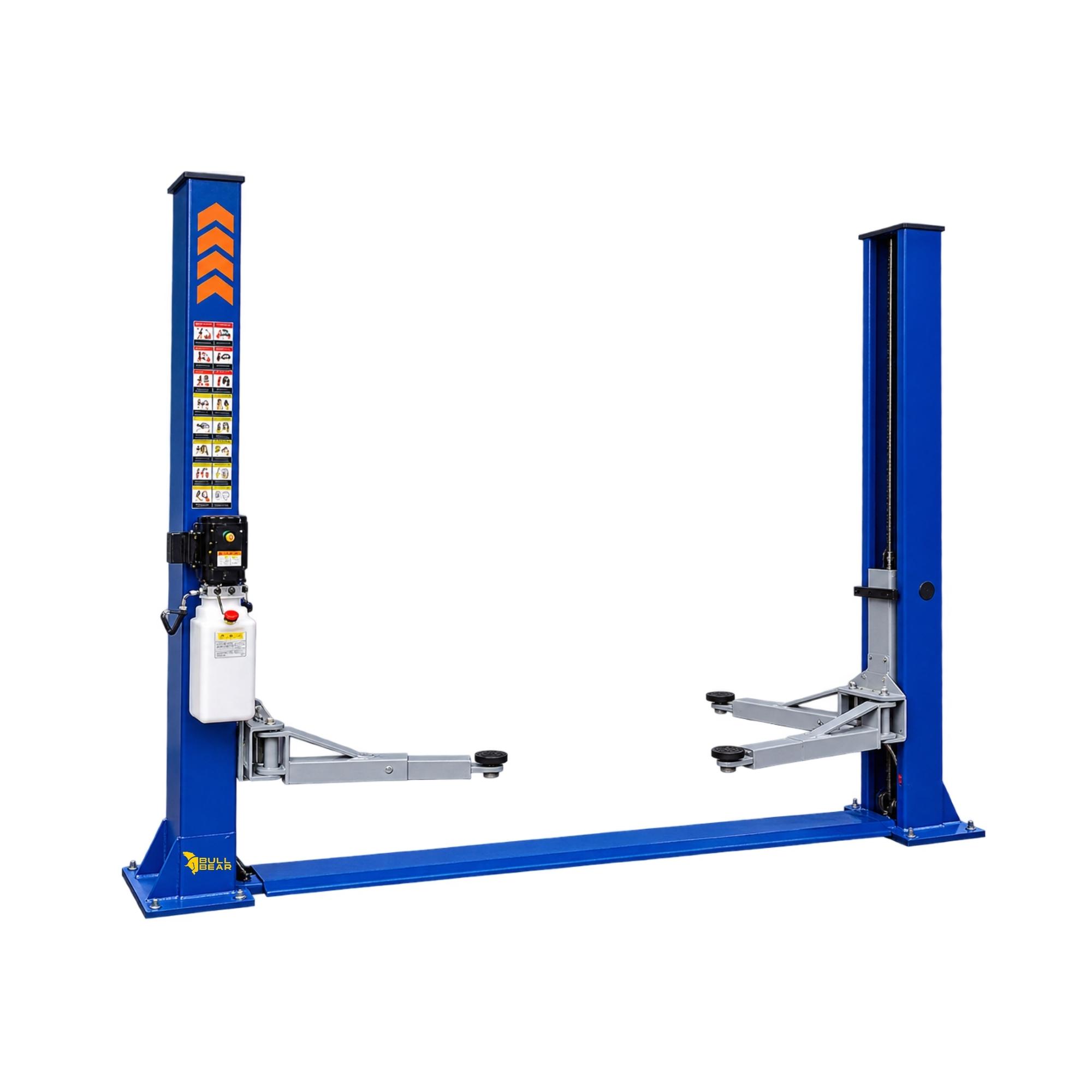

The Bull Bear BBTPL5000BP Two Post Lift – Base Plate is designed for professional automotive workshops requiring reliable vehicle lifting performance and efficient use of workshop space.
The lift features a heavy-duty two-column construction with a 4500 kg load capacity and a maximum lifting height of 1820 mm. Its 2860 mm overall column height makes it suitable for workshops where a practical floor-plate lift configuration is required.
The BBTPL5000BP uses a heavy-duty chain-over-electric hydraulic lifting system with cable equalization for balanced operation. The standard 2-stage telescopic arms provide flexible vehicle positioning and are suitable for a wide range of vehicles.
The lift includes rubber pads with built-in extensions for improved grip and stability. Its single-piece welded steel construction provides a strong structure for load distribution and durability.
The system is available with 1-phase 220V/50Hz or 3-phase 380V/50Hz electrical connection options.

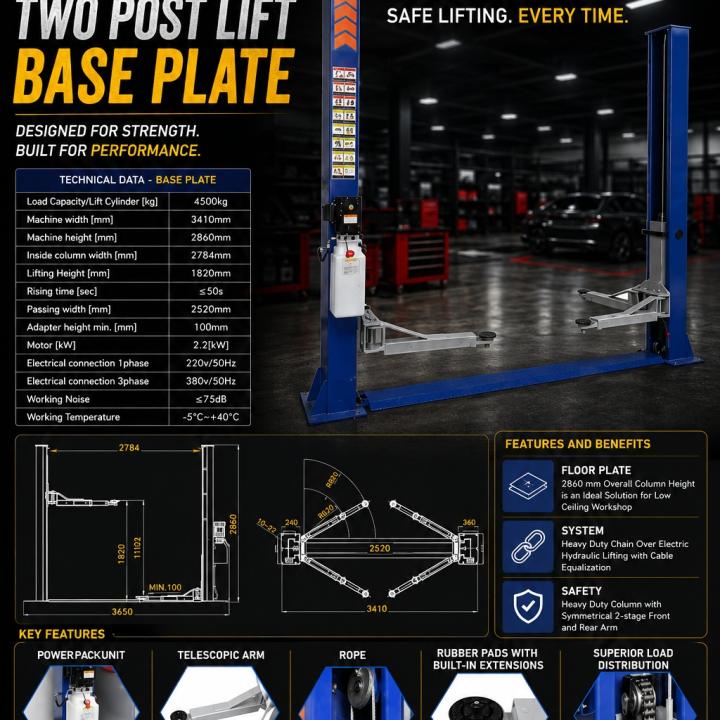

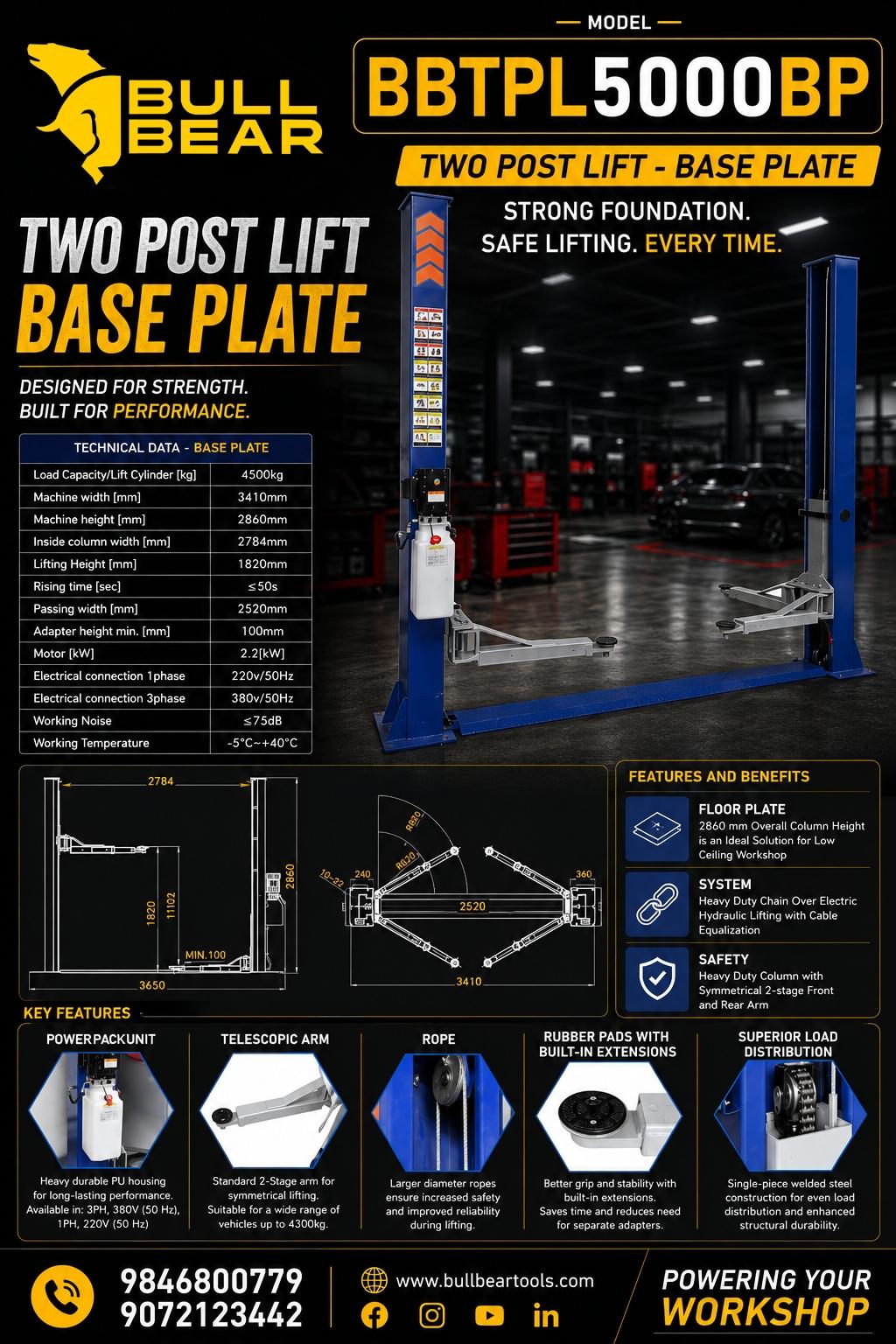

Technical Specifications
| Specification | Details |
|---|---|
| Model | BBTPL5000BP |
| Product Type | Two Post Lift – Base Plate |
| Load Capacity / Lift Cylinder | 4500 kg |
| Machine Width | 3410 mm |
| Machine Height | 2860 mm |
| Inside Column Width | 2784 mm |
| Lifting Height | 1820 mm |
| Rising Time | ≤50 sec |
| Passing Width | 2520 mm |
| Adapter Height Min. | 100 mm |
| Motor Power | 2.2 kW |
| Electrical Connection 1 Phase | 220V / 50Hz |
| Electrical Connection 3 Phase | 380V / 50Hz |
| Working Noise | ≤75 dB |
| Working Temperature | -5°C to +40°C |
| Overall Length | 3650 mm |
| Arm Type | Standard 2-Stage Telescopic Arm |
| Lifting System | Chain Over Electric Hydraulic |
| Equalization | Cable Equalization |
| Construction | Single-Piece Welded Steel |
