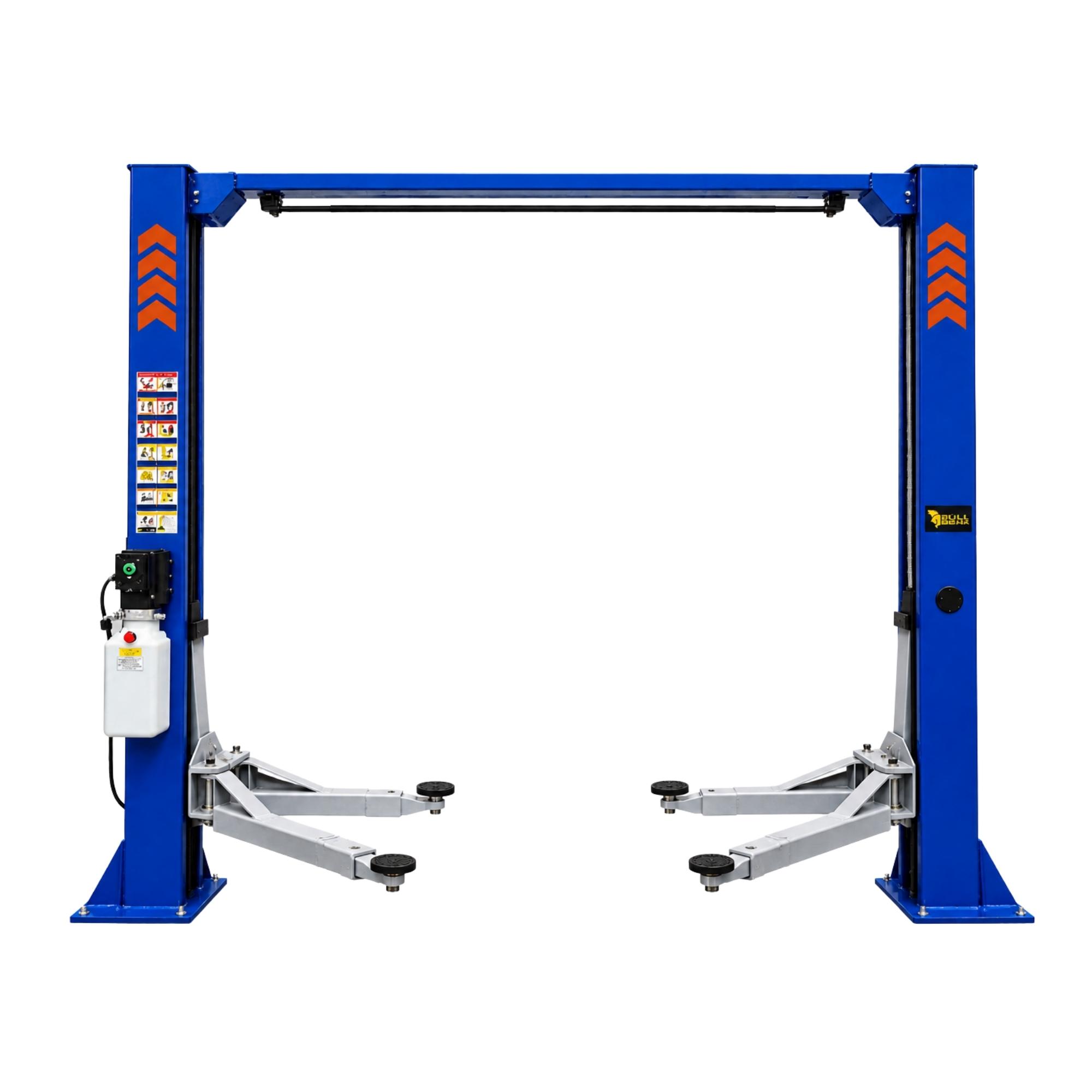

The Bull Bear BBTPL5000CF Two Post Lift – Clear Floor is designed for professional automotive workshops, service centers and vehicle repair garages requiring reliable and efficient vehicle lifting.
The clear floor design provides an open working area between the two columns, helping technicians move freely around the vehicle during servicing and maintenance. The lift offers a 4500 kg load capacity and a maximum lifting height of 1820 mm.
The BBTPL5000CF features a heavy-duty chain-over-electric hydraulic lifting system with cable equalization for stable and balanced lifting. Its standard 2-stage telescopic arms provide flexible positioning and are suitable for a wide range of vehicles.
The lift is equipped with rubber pads with built-in extensions for improved grip and stability. Safety features include rubber door guards, a padded overhead shut-off bar guard and heavy-duty steel construction.
The 2.2 kW motor is available with 220V/50Hz single-phase or 380V/50Hz three-phase electrical connection options.

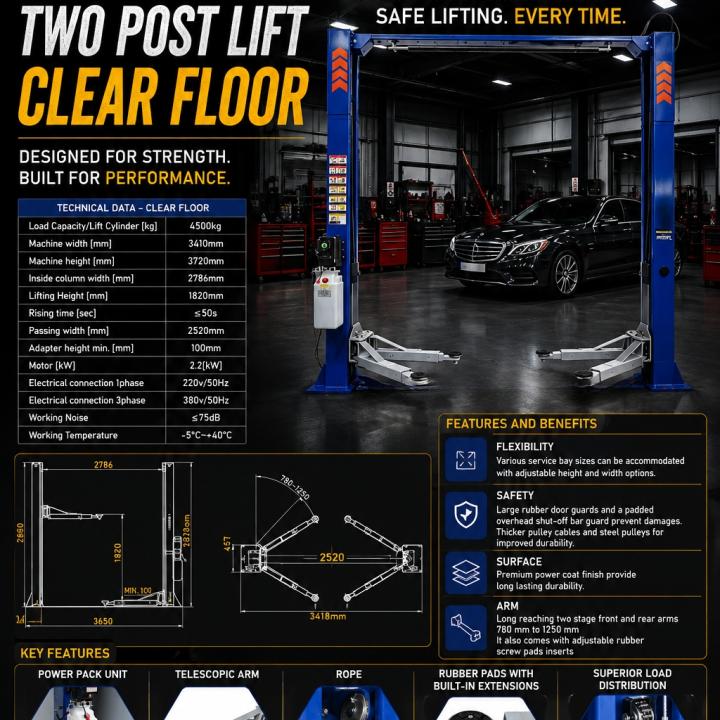

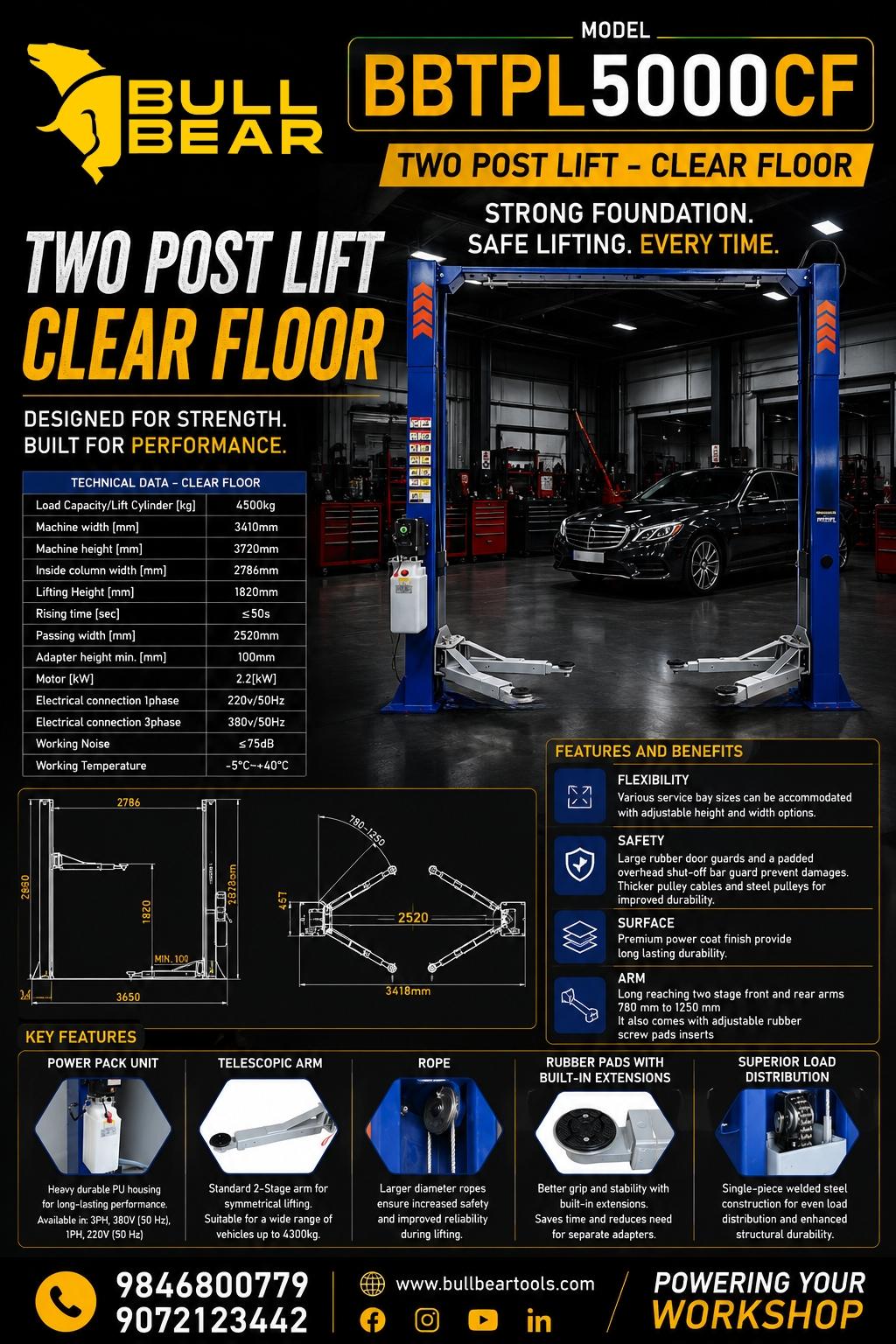

Technical Specifications
| Specification | Details |
|---|---|
| Model | BBTPL5000CF |
| Product Type | Two Post Lift – Clear Floor |
| Load Capacity / Lift Cylinder | 4500 kg |
| Machine Width | 3410 mm |
| Machine Height | 3720 mm |
| Inside Column Width | 2786 mm |
| Lifting Height | 1820 mm |
| Rising Time | ≤50 sec |
| Passing Width | 2520 mm |
| Adapter Height Min. | 100 mm |
| Motor Power | 2.2 kW |
| Electrical Connection 1 Phase | 220V / 50Hz |
| Electrical Connection 3 Phase | 380V / 50Hz |
| Working Noise | ≤75 dB |
| Working Temperature | -5°C to +40°C |
| Arm Type | Standard 2-Stage Telescopic Arm |
| Arm Reach | 780–1250 mm |
| Lifting System | Chain Over Electric Hydraulic |
| Equalization | Cable Equalization |
| Construction | Single-Piece Welded Steel |
| Finish | Premium Powder Coat |
